Cable Trays
PERFORATED CABLE TRAYS
This is a side railing and rung arrangement. The rung spacing are at standard distances as specified by consultants / customers or standard design codes.
These are channel type continuous support with perfection at the bottom. They provide added protection to the cable when covers are provided.
Perforated Cable Tray is a very effective way of managing cables. It ofers accessibility to cables while organizing and securing it.
The standard lengths of Cable Trays are 2500mm.
The standard widths are 50mm, 100mm, 150mm, 300mm, 450mm, 600mm, 750mm and 1000mm.
The standard heights are 25mm, 40mm, 50mm, 75mm and 100mm.
The finishing available are pre galvanized as per IS-277, Hot Dip Galvanized as per IS-2629 and IS-4759, powder Coated (60 Microns) and painted.
All types of accessories like, Horizontal bends, vertical Bends, Crosses, Crossbend and Tee's are available.

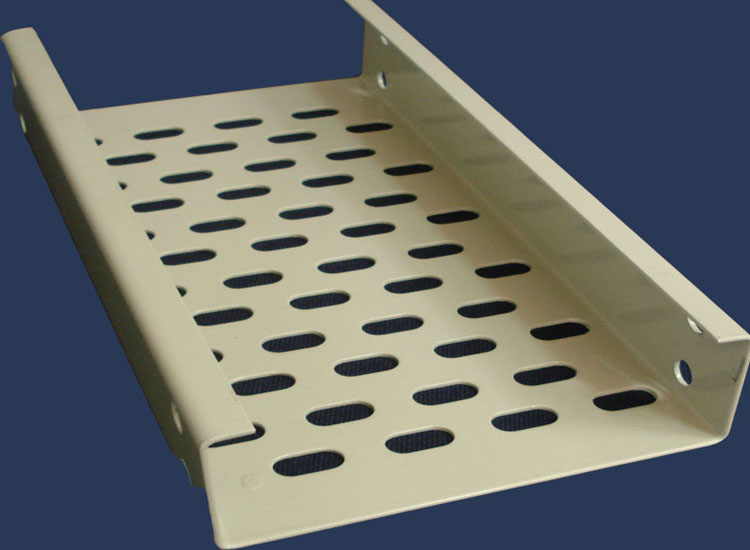

Wit Lip

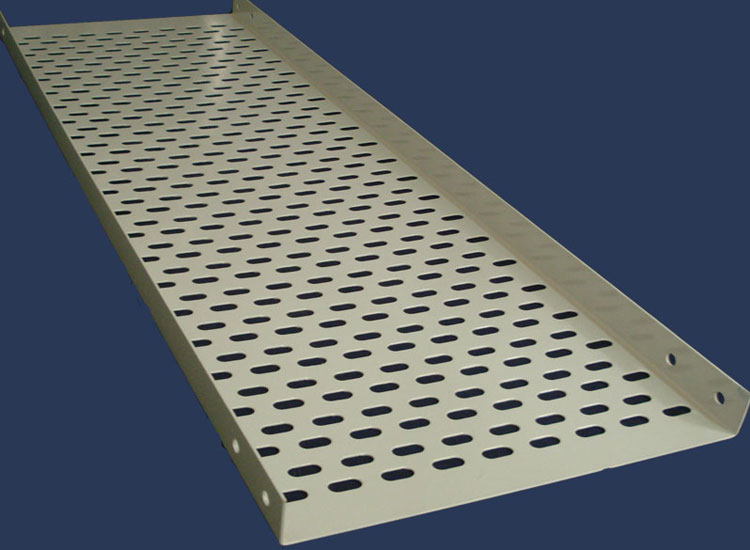

Without Lip
Accessories

Vertical bend Down

Vertical bend Up

90 Deg Horizontal Bend

Horizontal Tee bend
Reducer
